Leaning Tower of Pisa

Project Background

The Leaning Tower of Pisa was originally intended to be a freestanding bell tower (campanile) for the Cathedral of Pisa. Poor soil conditions caused the base of the tower to begin to tilt just twelve years after the foundation stone was laid in 1173; the weight of the first three floors caused deformation in the clay-rich muddy soil, and the tower began to lean. A century later, a second team tried to correct the lean by building the following four floors at a slant, but building was interrupted again, not to be completed for two centuries.

Initial Situation and Remediation Measures

Measurements taken since 1911 showed the tilt of the tower to be increasing at around 1.2 mm each year. A special commission was formed – the Consorzio Progetto Torre di Pisa – with the objective of restoring the building that had been given world heritage status. The commission hired our geotechnical engineers for consultation in 1986, and we examined the first soil samples from the foundation area. The aim of the restoration was not to straighten up the tower completely but slightly correct the tilt and stabilise the tower in this position. However, the tower had to be closed to visitors in January 1990 after reaching a critical angle.

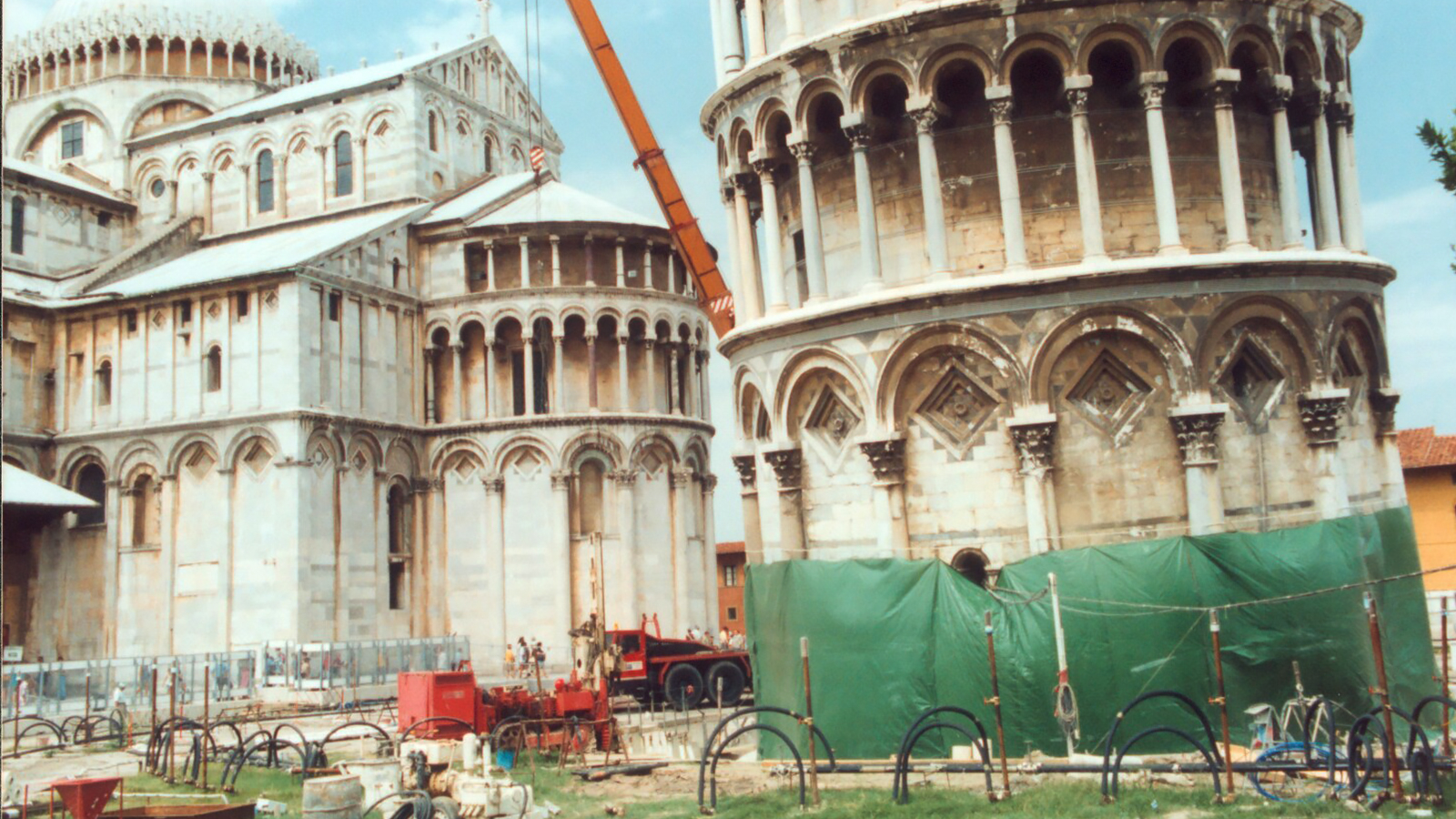

We advised the special commission on the impact of construction on the tower’s tilt and the stability of the tower during the restoration process and supervised further construction work during ground freezing. The tower’s tilt was finally reduced by 44 cm after twelve years of construction, and tourists have once again been able to climb up this symbol of the city of Pisa and view it from the inside since 2001.
